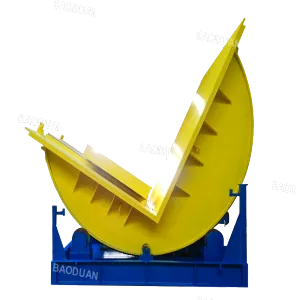

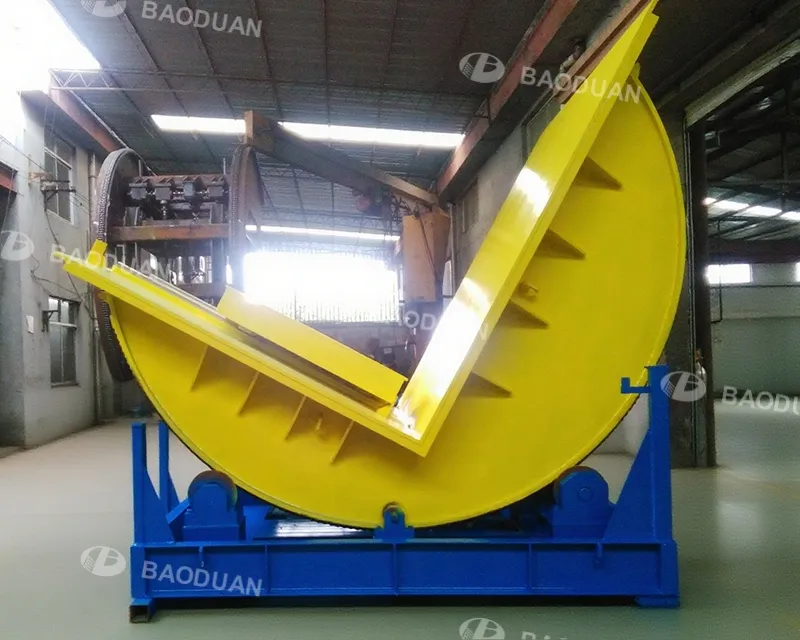

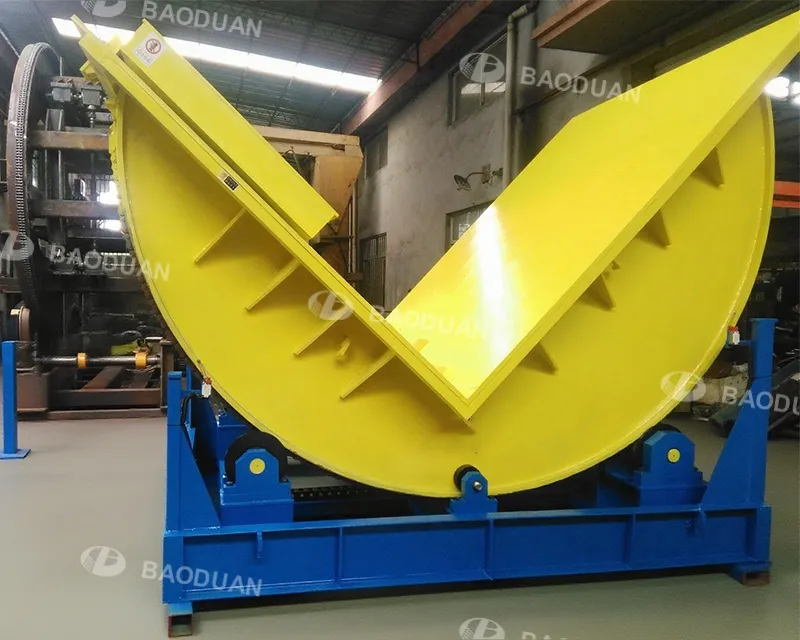

90FZJ series Coil Upender

APPLICATION:

A series of automatic turnover machine can be used for dislocation of different vertical & horizontal goods.

FEATURES:

Special double chain drive, oblique gear & worm speed reducer is adopted.

Four-roller device wrapped with polyamide adhesive.

Inverter controls are adopted, fast, stable & safe.

Adjustable mechanical pressure device is adopted.

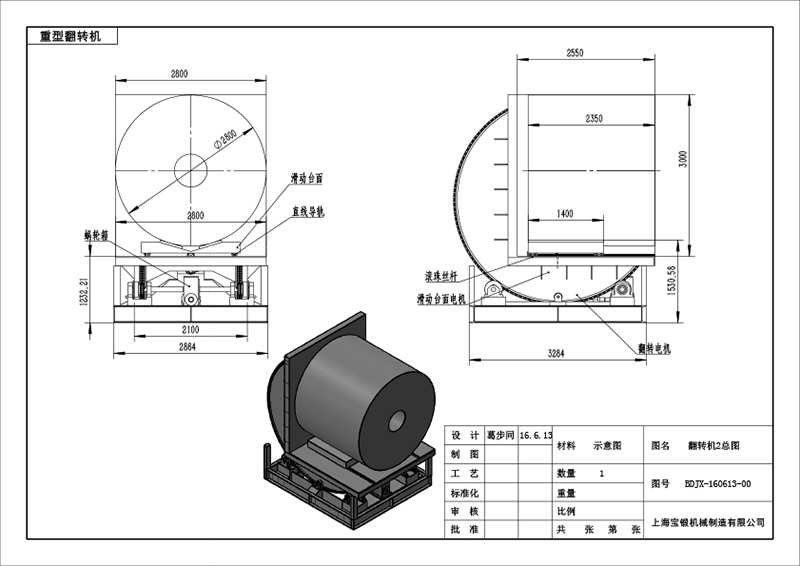

TECHNICAL DATA:

FEATURES

unique double chain drive, oblique gear and worm reducer is adopted

Four-Roller device is stable and safe.

Separate control table and allow remote operation

Multiple position limit system ensure the safety.

the machine can be stopped at random; object will stay in current position.

APPLICATION

FZJ series of turnover machine can be used for dislocation of different vertical & horizontal goods.
