Technical Specification for Wide Plate Wrapping Packaging Line

1. Equipment Overview:

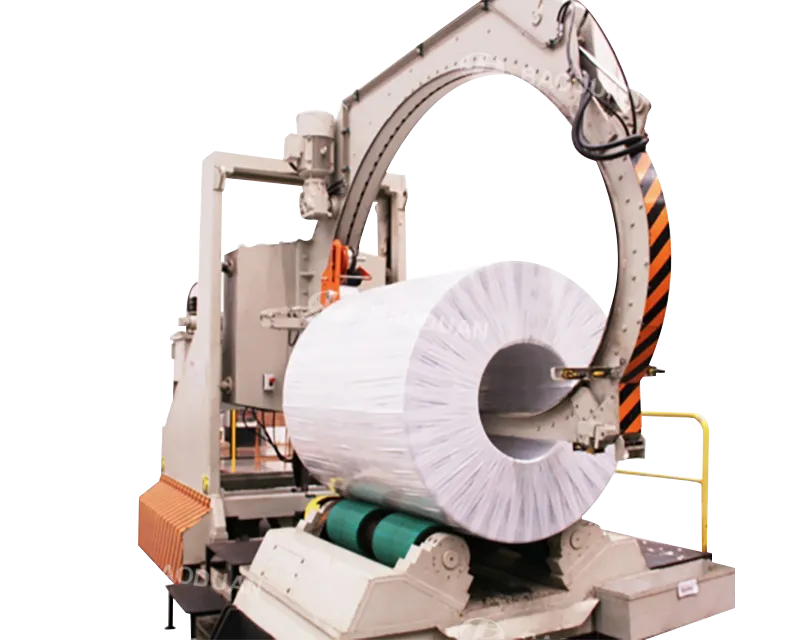

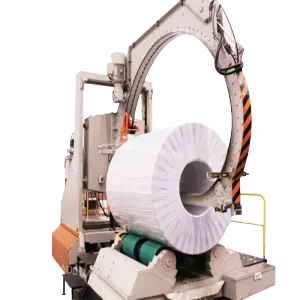

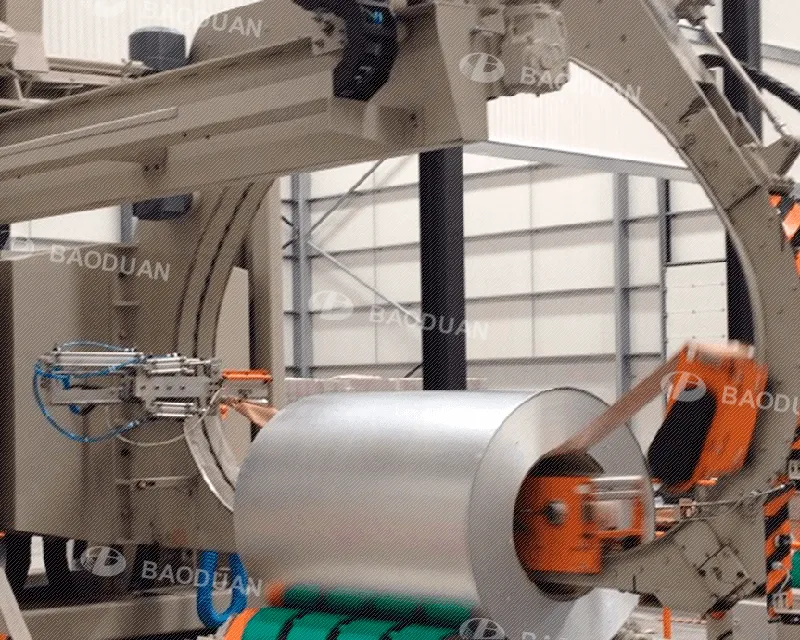

This machine is designed and manufactured specifically for the winding packaging of ultra wide aluminum strips, steel strips, coils, and other ring products. It is a highly automated, integrated, safe and practical packaging machine. This machine consists of a roller packaging station, a core piercing deep tube packaging host, a hydraulic system and electrical control system, safety barriers, etc.

2. Main technical parameters

3、Working environment

Environmental temperature: -25 ℃ -45 ℃

Relative humidity: 25-95%

At 40 ℃ and 70% humidity, it does not condense

Working power supply: AC380V±10%, 50HZ±2HZ three-phase five wire

Gas source pressure: ≥ 0.55Mpa

4、Main features

High automation, high integration, and high-precision configuration.

Capable of achieving automated continuous operations.

Equipped with multiple security measures to ensure the safety of personnel, equipment, and products.

Tailored design to meet the needs of users to the greatest extent possible.

Adopting modular design, the operation and application are simple and reliable.

The tension of the packaging material is adjustable and easy to adjust.

Easy replacement of packaging materials.

The design is innovative and the electromechanical integration is highly unified.
