Toppy Ph Dual Press Adv electric forklift is a versatile industrial handling equipment:

Working mode:

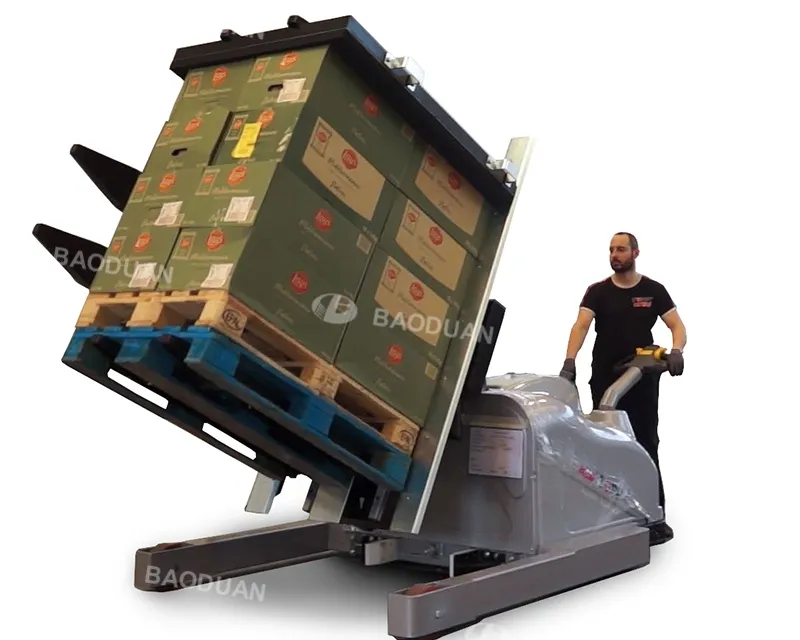

180 ° load rotation mode: In this mode, the forklift can perform 180 ° load rotation operation on various shapes and types of goods such as bags, bottles, barrels, and ton bags, which is suitable for handling raw materials and pallet replacement operations.

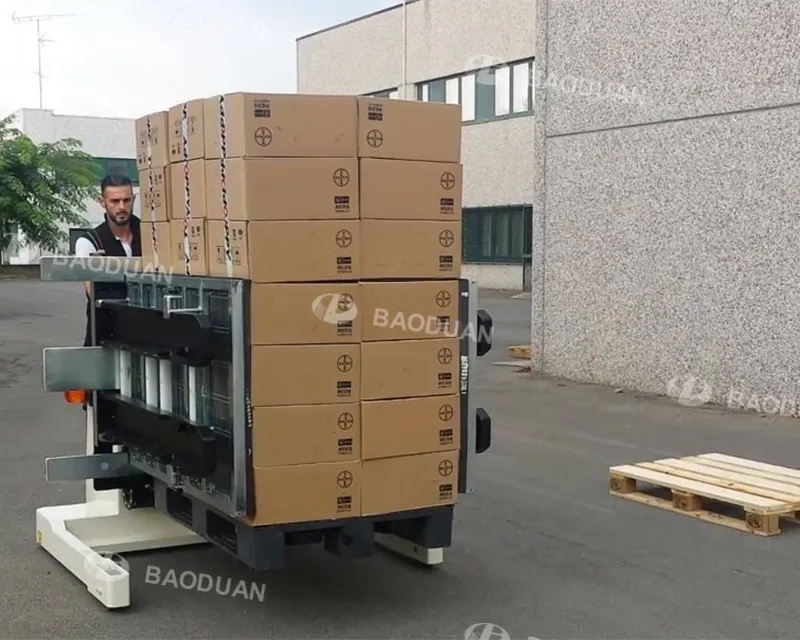

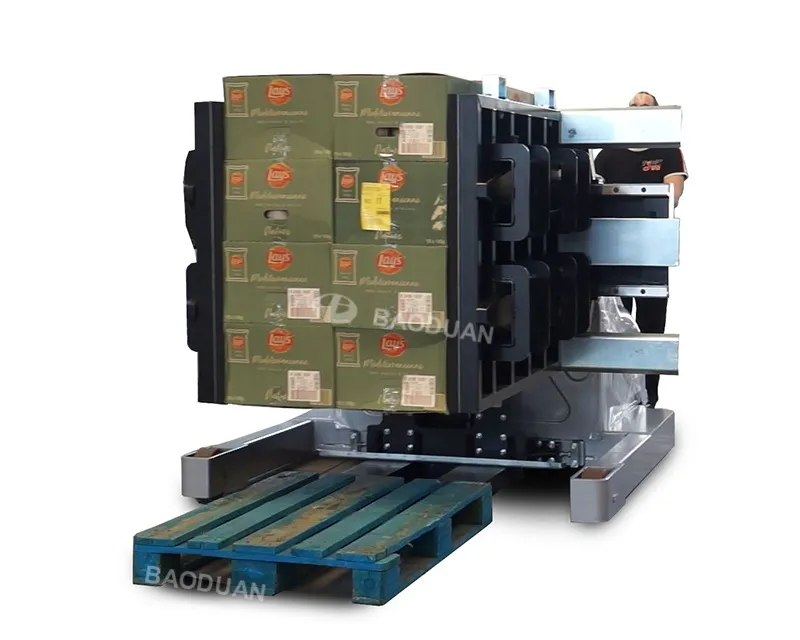

Side pressure mode (no rotation): mainly used for processing finished products, such as cardboard boxes. By using pressure platforms on both sides to horizontally clamp and fix the goods, non rotating handling and pallet replacement can be achieved to avoid damage to the finished products.

Main parameters:

Load capacity: The Maxi Toppy Ph Dual Press Adv forklift model can handle a load of up to 1500kg, which can meet the cargo handling needs in most industrial scenarios.

Front fork opening: The maximum front fork opening can reach 1800 millimeters, which can accommodate pallets and goods of different sizes.

Structural features:

Wide base frame: Adopting a wide base version of the frame design, this structure not only increases the stability of the forklift during operation, but also enables it to handle open or closed pallet bottoms, improving the versatility and adaptability of the equipment.

Pressure regulating device: equipped with a pressure selector, it can finely adjust the pressure applied to the goods through a pressure gauge or direct adjustment, ensuring that the goods will not be damaged due to excessive pressure during transportation, while firmly clamping the goods.

Application Scenario:

Due to its two different working modes, Toppy Ph Dual Press Adv electric forklift is suitable for various industries and scenarios, such as food, chemical, pharmaceutical, logistics and warehousing industries. It can be used for the storage and handling of raw materials, packaging and transportation of finished products, and pallet replacement operations.

The side pressure mode of Toppy Ph Dual Press Adv electric forklift has the following advantages:

Protection of goods: The side pressure mode does not perform flipping operations and is suitable for easily damaged goods such as finished products, such as products packaged in boxes. It can avoid damage to goods due to tilting or reversing during pallet replacement.

Precise clamping: By rotating the motor to drive the screw rod to rotate, the screw rod rotates to drive the sliding seat to move, and the sliding seat moves to drive the side pressure plate to move, the transported goods can be horizontally clamped and fixed, so that the goods are not easily dropped during the transportation process, ensuring the stability and safety of the transportation.

Fine adjustable pressure: This forklift may be equipped with a direct adjustment or four position pressure selector, which can finely adjust the pressure of the side pressure according to the characteristics and needs of the goods, ensuring that the goods are firmly clamped without damaging them due to excessive pressure.

Improving work efficiency: Electric forklifts have the characteristic of fast instantaneous response speed and can maintain high work efficiency even in side pressure mode, theoretically improving by 15% -20% compared to fuel forklifts. And there is no need for manual refueling and shift changes, with stronger continuous operation capability. A single charge can meet the high-intensity operation needs of 8-12 hours, reducing efficiency losses caused by downtime and helping to improve overall cargo handling and pallet replacement efficiency.

Wide applicability: Maxi Toppy Ph Dual Press Adv can handle loads up to 1500 kg, with a front fork opening of 1800 millimeters. Its frame is a wide base version that can handle open or closed pallet bottoms, and can adapt to various types and specifications of pallets and goods, expanding its application scenarios and scope.
