Electric Flip Machine: Principle, Core Composition, Classification, and Application Analysis

Electric flipping machine is an automated equipment that uses electrical energy as its core power source and drives mechanical structures through motors to achieve material flipping, flipping, or angle adjustment. It is widely used in industries such as metal processing, papermaking, packaging, logistics, and building materials. Its core value lies in replacing manual completion of high-risk and high-intensity heavy object flipping operations, while improving flipping accuracy and production efficiency, ensuring personnel safety and material quality.

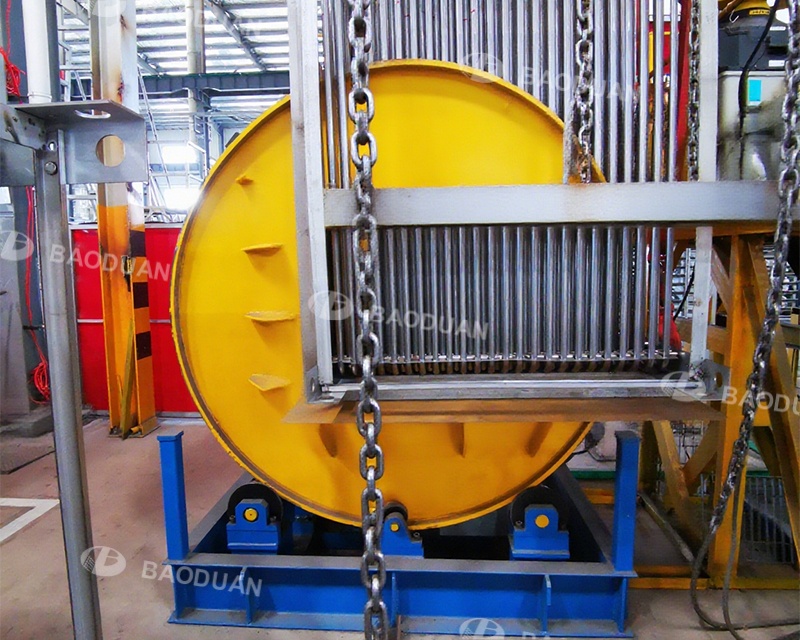

The core working principle of electric flipping machine

The working logic of an electric flipping machine revolves around three major stages: power conversion, motion transmission, and precise control. The core is to convert electrical energy into mechanical energy through a motor, and then drive the flipping mechanism through a transmission system to achieve stable flipping of materials at a preset angle. The specific process is as follows:

Power input: The external power supply supplies power to the driving motor, which starts according to the control system instructions and outputs rotational power;

Motion transmission: The motor power is transmitted to the flipping spindle or flipping frame through transmission components, converting the high-speed rotation of the motor into low-speed, high torque rotation of the flipping mechanism;

Material fixation and flipping: The flipping mechanism fixes the material through a clamping device to prevent it from slipping during flipping; Subsequently, driven by the transmission system, the animal material is smoothly flipped at a preset angle;

Precise control: PLC or dedicated control system receives real-time sensor feedback signals, adjusts motor speed, monitors clamping force, and limits flipping angle to ensure safe and accurate flipping process.

The core components of an electric flipping machine

The structure of the electric flipping machine needs to be designed around four major functions: power drive, material fixation, motion execution, and safety control.

The main classification of electric flipping machines

According to the differences in material types, flipping requirements, and production scenarios, electric flipping machines can be divided into the following common types, and specific job objectives need to be matched when selecting:

1. Classify by flipping material type

Coil electric flipping machine: specially designed for cylindrical materials such as metal coils, plastic coils, and paper rolls, equipped with arc-shaped clamps or "V-shaped" clamping worktable, to fit the outer circle of the coil and prevent rolling; Some models support "90 ° vertical to horizontal" or "180 ° flipping", which is suitable for the process connection of coil material from storage to unwinding processing.

Plate electric flipping machine: For flat materials such as steel plates, wooden boards, glass, stone, etc., it adopts "clamp type" or "suction cup type" clamping, and the flipping angle is mostly 90 ° or 180 °. It is commonly used in industries such as furniture manufacturing and building curtain walls.

Box/basket electric flipping machine: used for flipping or flipping materials and baskets in boxes. It adopts a "frame clamping" or "forklift docking" structure and can achieve 360 ° continuous flipping or fixed-point angle flipping (flipping scene), suitable for logistics warehousing and automotive parts production.

2. Classify by flipping structure and motion mode

Single axis flipping machine: driven by a single spindle to rotate the flipping frame, with a simple structure and low cost, suitable for 90 °/180 ° flipping of small and medium-sized materials, such as small steel coils and sheet metal processing plants.

Double axis flipping machine: equipped with two rotating axes, it can achieve a composite action of "flipping+translation" of materials, such as flipping the coil from horizontal to vertical first, and then translating and docking it with the conveyor line; Suitable for large-scale, high-precision demand scenarios.

Mobile electric flipping machine: The base is equipped with universal wheels or tracks, which can be flexibly moved in the workshop and adapt to the needs of multiple workstations sharing; It should be noted that the load-bearing capacity of mobile models is usually lower than that of fixed models, and they need to be equipped with braking devices to ensure stability during operation.

The core advantages of electric flipping machine

Compared to traditional manual and hydraulic flipping machines, electric flipping machines have significant advantages in automation, applicability, and safety:

High degree of automation, reducing labor costs: supports one click start, preset parameter storage, no need for manual adjustment of clamping force and flipping speed, single person operation, reducing the need for 2-3 movers; Some models can be linked with the production line PLC to achieve unmanned circulation.

Accurate and stable flipping, protecting material quality: Servo motor+PLC control can achieve flipping angle error of ≤± 1 ° and stepless speed adjustment, avoiding material shaking and deformation caused by sudden speed changes in hydraulic flipping machines; The clamping force is monitored in real time through a pressure sensor to prevent over tightening or over loosening and slipping.

Low energy consumption and convenient maintenance: Electric drives do not require frequent replacement of hydraulic oil, and daily maintenance only requires cleaning the motor and checking the lubrication of transmission components. Maintenance costs are 30% -50% lower than hydraulic models; And the energy consumption of the motor varies with the load, making long-term use more energy-efficient.

Adequate safety redundancy: Integrated with multiple safety designs such as emergency shutdown, overload protection, and photoelectric grating protection, the accident rate can be reduced by over 90% compared to manual flipping; Some heavy-duty models also support "fault self diagnosis", which displays fault codes through the touch screen for quick troubleshooting.

Typical application scenarios of electric flipping machines

The electric flipping machine has strong adaptability and covers core processes in multiple industries. The following are common application cases:

Metal processing industry: Steel/aluminum coils are flipped from horizontal storage to vertical, or from vertical to horizontal after processing; After welding the steel plate, flip it 180 ° for back welding to avoid deformation caused by manual flipping of the plate.

Paper and packaging industry: After paper roll production, flip 180 ° to achieve "end face switching", or flip 90 ° to dock with printing/slitting machines; In the cardboard packaging line, flip the finished products in the box 90 °/180 ° for easy stacking or labeling.

Building materials and furniture industry: After the production of gypsum board and density board, flip them 180 ° to check the surface quality, or flip them 90 ° vertically and transport them to the edge sealing process; In stone processing, flipping large stone slabs 90 degrees to achieve vertical cutting and improve processing accuracy.

Logistics and warehousing industry: The material basket is flipped 180 ° and poured onto the conveyor line, replacing manual dumping; The container/large box body is flipped 90 degrees for easy loading and unloading of internal goods, reducing manual handling intensity.

Key considerations for choosing an electric flipping machine

Matching material parameters: Prioritize confirming the maximum weight, size, and material characteristics of the material, ensuring that the rated load-bearing capacity of the equipment is ≥ 1.2 times the weight of the material, and the clamping device is adapted to the shape of the material.

Clear flipping requirements: Determine the core flipping angle, whether to dock with subsequent equipment, and production pace.

Pay attention to safety and automation functions: In industrial scenarios, priority should be given to selecting models with "photoelectric grating protection", "overload protection", and "emergency stop"; The fully automated production line needs to confirm whether the equipment supports industrial communication interfaces and can be linked with the main control system.

Considering the site and installation conditions: For fixed aircraft models, the workshop floor load-bearing capacity and installation space need to be confirmed; Mobile models require confirmation of workshop aisle width and ground flatness.

In summary, electric flipping machines are key equipment in modern industry for "cost reduction, efficiency improvement, and safety". When selecting, it is necessary to comprehensively evaluate the material characteristics, production needs, and safety standards to ensure that the equipment is deeply adapted to the production process, rather than simply pursuing high configuration.

8. How to choose an electric flipping machine model that suits your production needs? How to select an electric tilter model that suits your production needs?

Choosing an electric flipping machine model that suits one's own production needs should revolve around four dimensions: core production parameters, scene adaptability, safety compliance, and automation requirements. By clarifying key indicators, eliminating mismatched options, and prioritizing models that fit long-term production plans, the ultimate goal is to achieve precise matching between equipment and production capacity, efficiency, and safety. The following is the specific decision-making framework and practical steps:

Step 1: Clarify the core load parameters - eliminate "overload" or "performance waste"

The load related parameters are the "basic threshold" of the electric flipping machine, which directly determines whether the equipment can operate stably and needs to be accurately calculated as a priority:

1. Maximum flipping weight

Calculation logic: Based on the heaviest roll/workpiece that needs to be flipped during production, rather than the average weight. For example, if 5 tons of coil material need to be flipped daily, but 6 tons of special specifications need to be processed occasionally, a model with a rated load of ≥ 6 tons should be selected (with a 10% -20% safety margin reserved to avoid motor/structural component losses caused by long-term full load operation).

Attention to Misconceptions: Do not choose models that far exceed the demand due to occasional overloading, otherwise it may result in equipment volume being too large, high energy consumption, increased procurement costs, and may not match the workshop space.

2. Flip the size and shape of the workpiece

Dimensional parameters: It is necessary to specify the diameter, length, and thickness of the workpiece to ensure that the "clamping/supporting structure" of the equipment can be adapted. For example:

Roll type: It is necessary to match the "roll diameter range" of the flipping machine to avoid unstable clamping caused by thick rolls or ineffective fixation caused by thin rolls;

Plate/box type workpieces: It is necessary to confirm the "support platform length" and "clamping stroke" of the flipping machine to prevent the workpiece from exceeding the support range and causing flipping imbalance.

Form adaptation: If the surface of the workpiece is prone to scratching, it is necessary to choose a model with a flexible clamping device to avoid product damage caused by hard contact.

Step 2: Match production scenario characteristics - avoid "disconnection between equipment and environment"

The differences in space, process, and working conditions in production scenarios directly affect the "feasibility" and "operational efficiency" of equipment, and the following four points need to be focused on:

1. Workshop space and layout limitations

Site size: Measure the "channel width, work area length, ceiling height" of the workshop - for example, small mobile flipping machines should be selected for narrow channels, models with lifting functions can be considered for high spaces, and "horizontal flipping structures" should be selected for low spaces.

Installation method: Choose according to spatial flexibility:

Fixed floor type: suitable for long-term fixed workstations, with strong stability but unable to move;

Track mobile type: suitable for long-distance operations, requiring advance laying of tracks;

Forklift/crane compatible: If there are already forklifts in the workshop, the "forklift mounted flipping machine" can be selected.

2. Production rhythm and efficiency requirements

Flip speed: Choose according to the production line rhythm - for example, high-speed assembly lines need to choose models with high-speed motors and hydraulic auxiliary drives; Intermittent production can choose medium and low-speed models.

Continuous working hours: If 24-hour continuous operation is required, the model of "heavy-duty motor+heat dissipation structure" should be selected to avoid motor overheating and shutdown; Intermittent work can choose the light load type.

3. Environmental conditions

High temperature environment: Choose materials that are resistant to high temperatures, and the motor should be equipped with a "forced air cooling system" to avoid coil aging;

Wet/corrosive environment: Waterproof and anti-corrosion type should be selected, and the electrical box should have a sealed structure to prevent water vapor/chemical media from entering;

Dust environment: Choose the "dust protection type", with a filter at the motor inlet and a dust cover on the moving parts to reduce dust accumulation.

Step 3: Lock in safety and automation requirements - match production management standards

1. Safety protection: eliminate operational risks

According to industry safety standards, priority should be given to models with the following functions:

Overload protection: When the load exceeds the rated value, the equipment automatically stops and alarms;

Anti rollover protection: When the workpiece deviates during the flipping process, the "clamping force automatic compensation" is triggered, or the machine is stopped directly;

Emergency stop: The body should be equipped with a "dual hand start button" and multiple emergency stop switches. When power is cut off, the "brake lock" function should be included;

Human machine isolation: If it is an automated production line, it needs to support "safety light curtains/infrared sensors".

2. Automation and Intelligence: Reducing Human Dependence

Select based on the level of workshop automation:

Basic automation: Requires support for "button based operation", suitable for manual assisted production;

Advanced automation: If connecting to MES system, you need to choose a model with "PLC control system+communication interface", which can achieve "remote control and production data upload";

Unmanned requirements: If it is a black light factory, it is necessary to choose the "fully automatic type" - with visual positioning, automatic clamping, and linkage with AGV/robotic arm to achieve unmanned operation.

Step 4: Consider later operation and maintenance costs - avoid "can afford, can't afford"

1. Convenience of operation and maintenance

Replacement of vulnerable parts: Choose "standardized vulnerable parts" to avoid niche brands;

Maintenance space: The body needs to reserve a "maintenance window", and core components such as motors and reducers are easy to disassemble for daily maintenance;

Manufacturer service: Priority should be given to brands with "local after-sales outlets" to ensure on-site repairs within 24-48 hours in case of malfunctions, avoiding prolonged downtime.

2. Cost estimation: comprehensive cost-effectiveness

Initial procurement cost: Don't just focus on low prices, compare the "configuration and price matching" - for example, for the same load model, those with safety protection and automation functions are 10% -30% more expensive than the basic model, but can reduce later safety accidents and labor costs, making them more cost-effective in the long run;

Post use cost: Calculate energy consumption and replacement cost of vulnerable parts.

Summary: Decision Checklist

Before final selection, the following checklist can be used to verify whether it meets the requirements:

Load: Is the maximum weight/size within the rated range of the equipment?

Space: Is the equipment size suitable for the workshop channel/work area? Is the installation method feasible?

Condition: Does the environment (temperature/humidity/dust) match the equipment protection level?

Efficiency: Does the flipping speed/continuous working time meet the production line rhythm?

Safety: Does it have core protection functions such as overload, anti rollover, and emergency stop?

Automation: Is it compatible with the control requirements of existing production lines?

Operation and maintenance: Are vulnerable parts universal? Is the manufacturer's after-sales service timely?

Through the above steps, it is possible to accurately eliminate mismatched models and ultimately select an electric flipping machine with "sufficient load, suitable scene, sufficient safety, and excellent cost", achieving a dual improvement in production efficiency and safety.
